Easy Rear Big Brake Upgrade for S13 & S14 !!!

mike2016 · 06-20-2007, 10:26 PM

So you have 300zx front brakes and your ghetto stock rears look too small ? not enough braking power in the rear? You thought about going 300zx rear brakes but have trouble getting all the parts? You want something easy and bolts on? This is it, the easiest rear brake upgrade kit for S13 & S14 !

We made an extension adapter which extends the stock caliper to use a bigger rotor, it measures 312mm or about 12.2inch.

This setup allows you to run the stock caliper and keep the existing e-brake assembly. Simple install, just bolt the caliper to the adapter, install new rotor and put everything back on and you are done!

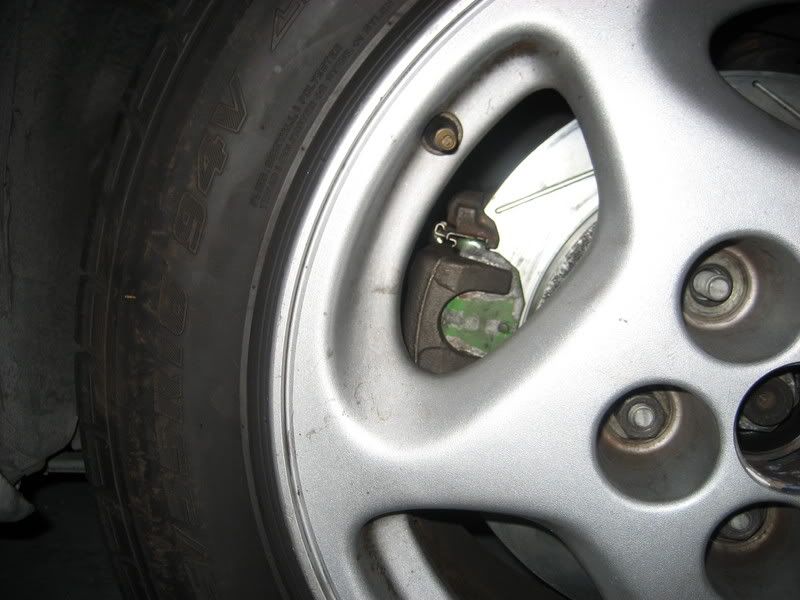

Installed Pics:

Adapater is CNC cut from 6061 T6 aluminum for the added strength
312mm (12.2inch) Slotted Rotors
All Hardware Included

Normally, We sell these for $397.50 + S/H (which cost another $40-50)

If we can get just 3+ buyers, the price will be $390 SHIPPED

We already received 5 sets and there are 10 sets coming by next week.

If you are interested, please PM me or post to the thread.

*DOOK* · 06-20-2007, 10:35 PM

are the rotors gold plated or something? cause damn, for a set of rotors and a couple brackets that's kinda steep isn't it?

Remus · 06-20-2007, 10:50 PM

http://page3.auctions.yahoo.co.jp/jp...u=espoirsp2002

Similar product on yahoo auctions japan.

mike2016 · 06-20-2007, 10:57 PM

I wish they are cheaper but the cost is high...

yes similar to that yahoo auction but these rotors are slightly bigger.

*OptionZero* · 06-20-2007, 10:57 PM

what car are the rotors from

*DOOK* · 06-20-2007, 11:01 PM

maximas run about that up front don't they?????

vanish1 · 06-20-2007, 11:47 PM

Quote:

Originally Posted by mike2016

I wish they are cheaper but the cost is high...

aka the excuse I give so I can maximize profits.

how much just for the brackets?????????????????????

slow40 · 06-21-2007, 01:57 AM

cool, still a little high though...

*ixfxi* · 06-21-2007, 02:10 AM

hmmmmmmmmmmmmmmmmmm

last i checked, rear brakes arent *that* useful. plus, z32 f brakes w/o master cylinder doesnt have proper proportioning.

either way, its a nice option but should be packaged better, or atleast advise people to run a prop-valve in order to attain proper bias.

mike2016 · 06-21-2007, 02:55 AM

Quote:

Originally Posted by ixfxi

hmmmmmmmmmmmmmmmmmm

last i checked, rear brakes arent *that* useful. plus, z32 f brakes w/o master cylinder doesnt have proper proportioning.

either way, its a nice option but should be packaged better, or atleast advise people to run a prop-valve in order to attain proper bias.

z32 f brakes with stock master cyl work just fine, with stock rear calipers. If you have F&R Z32, then you should do a M/C upgrade.

Stock JDM S14 & S15 comes with the same 4 piston Z32 Front calipers from the factory, and the master cylinders have the same size valving.

mike2016 · 06-21-2007, 02:55 AM

Quote:

Originally Posted by OptionZero

what car are the rotors from

these are Mustang GT rotors

waynehead05 · 06-22-2007, 06:01 PM

if the price comes down i'm in.

bullitt4110 · 06-22-2007, 06:07 PM

Quote:

Originally Posted by vanish1

how much just for the brackets?????????????????????

I would also be interested in just the brackets.

waynehead05 · 06-23-2007, 01:14 AM

i would too.

w00tang · 06-23-2007, 01:30 AM

yep..
looks like a decent deal..

price is a bit high, though.

420sx · 06-23-2007, 05:18 PM

how about just brackets

FRpilot · 06-24-2007, 12:58 AM

offtopic. (but relates to this thread and the evo/sti thread on zilvia) can you guys design/sell brackets utilizing imprezza sti/mitsubishi evolution front brembos with evolution brake rotors? how much would it be or is it better to go to our own local machine shop and get them made.

*GoodOl'S13* · 06-24-2007, 01:23 AM

That caliper looks tiny on that rotor it looks like its the parking brake, and the main caliper isnt installed

*ALEXTHESUS*PECT* · 06-24-2007, 01:40 AM

if you use the same size caliper just bigger rotors then you get no extra stopping power.........

so it's $390 to get bigger calipers with more weight but no added stopping power? am i missing something?

*DOOK* · 06-24-2007, 01:50 AM

you forgot the part about looking cool with big giant rear rotors

*Gabe╚╗14* · 06-29-2007, 03:43 AM

Quote:

Originally Posted by nismornr

if you use the same size caliper just bigger rotors then you get no extra stopping power.........

so it's $390 to get bigger calipers with more weight but no added stopping power? am i missing something?

I was thinking the same thing,
they would need bigger calipers in the rear also to actually make a difference.

cgguy · 06-29-2007, 11:52 AM

I would also be in for just the brackets.

Also, would this have any negative effect/screw with the ABS system?

kensreliableb18b · 06-29-2007, 12:33 PM

Quote:

Originally Posted by nismornr

if you use the same size caliper just bigger rotors then you get no extra stopping power.........

so it's $390 to get bigger calipers with more weight but no added stopping power? am i missing something?

larger rotors equate to more braking surface area (circumference of the rotor is increased). so technically speaking, you do gain extra stopping power--regardless of whether or not the increase is significant.

not trying to justify the price, just dont want people to be misinformed.

MrSpArkle · 07-01-2007, 12:48 PM

Quote:

Originally Posted by kensreliableb18b

larger rotors equate to more braking surface area (circumference of the rotor is increased). so technically speaking, you do gain extra stopping power--regardless of whether or not the increase is significant.

not trying to justify the price, just dont want people to be misinformed.

...huh?

I think the only benefit to these things is better heat dissipation, which can hurt or help depending on your pads and how you beat on them. These are also likely to make your car stop slower due to the extra mass.

So, maybe under very particular circumstances these will help your car brake better. Under most conditions though... well, yeah, at least they look the part.

WilloW · 07-01-2007, 01:34 PM

Quote:

Originally Posted by kensreliableb18b

larger rotors equate to more braking surface area (circumference of the rotor is increased). so technically speaking, you do gain extra stopping power--regardless of whether or not the increase is significant.

not trying to justify the price, just dont want people to be misinformed.

He's right, I couldn't put it into words so I Google it. Read the part for Torque and Brake Rotor.

http://sports.racer.net/brake_bias.htm

LB.Motoring · 07-01-2007, 06:00 PM

Its true,

but for the price

you can buy a whole z32 rear setup and be a step above this setup.

300 for a full rear setup...

*Project3328* · 07-01-2007, 11:45 PM

these rotors work freakin amazing.. i have the z32 tt caliper up front with the 350z rotors and this kit in the rear..

Cloud9 · 07-02-2007, 09:10 AM

price for just bracket shipped to 55124

Harbe · 07-02-2007, 09:57 AM

looks good but why the fuck are there so many brake upgrades for the rear stock shitty caliper and not the z rear damnit.

S13Dreamer · 07-02-2007, 06:26 PM

PM Sent........
